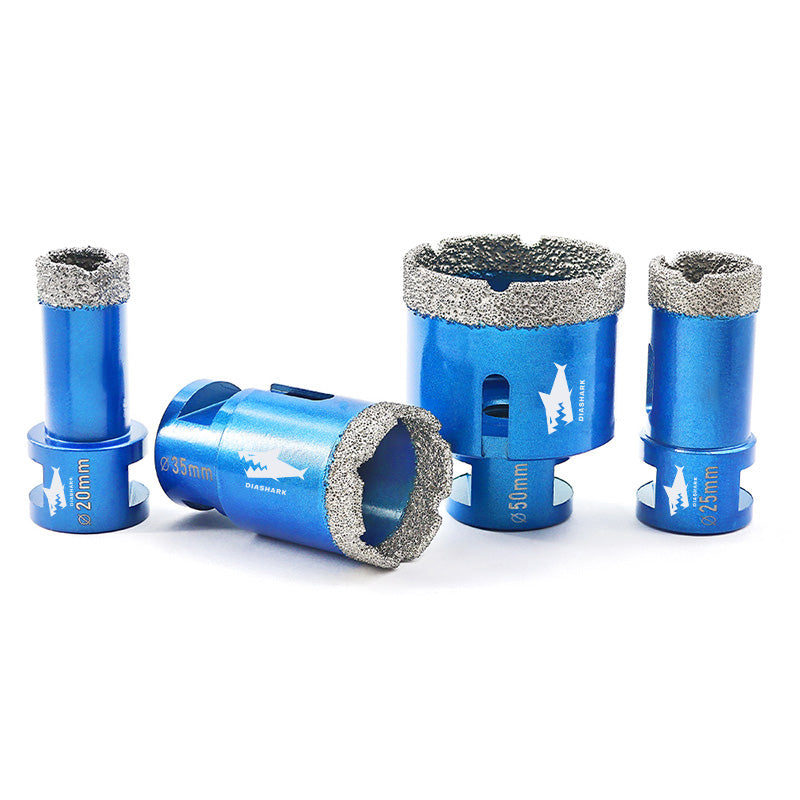

Best Angle Grinder RPM and Diamond Hole Saw Selection for Porcelain Tile Drilling

When users purchase a vacuum brazed diamond hole saw, the most common assumption is that tool lifespan is defined purely by manufacturing quality. In practice, this assumption is incomplete.

The performance of a diamond drill bit is determined by a system of variables: spindle speed, applied load, cooling conditions, and most importantly, the interaction between abrasive geometry and substrate hardness.

Field feedback consistently shows that incorrect angle grinder RPM is the leading cause of premature wear, diamond glazing, and porcelain tile damage. In most cases, the tool is not defective. It is simply being operated outside its optimal mechanical window.

Many users attempt to improve efficiency by running angle grinders at maximum speed. However, porcelain tile drilling does not respond to speed in a linear way. Once rotational velocity exceeds the material’s thermal tolerance threshold, frictional heat accumulates faster than it can dissipate. This leads to glaze formation on the diamond surface, edge chipping on the tile, and rapid degradation of the brazed matrix.

The result is predictable: reduced cutting speed, early tool failure, and fractured tile edges even when using a premium hole saw cutter.

Why RPM Control Is Critical in Diamond Drilling Mechanics

Vacuum brazed tile drill bits operate through abrasive micro-fracture rather than conventional cutting. Each exposed diamond particle functions as an individual cutting edge that gradually fractures the ceramic matrix at a microscopic level.

For this mechanism to remain stable, the system must maintain a controlled balance between peripheral speed, heat dissipation, and debris evacuation. This is the core principle of drilling tribology.

When RPM is too high, peripheral velocity increases beyond the thermal capacity of both the diamond layer and the brazed bond. Heat accumulates at the rim of the tool, and instead of exposing fresh diamond particles, the surface becomes polished and sealed. This condition is known in material science as glazing.

Once glazing occurs, the tool transitions from an abrasive cutting state into a frictional rubbing state. At this point, the core drill bit no longer removes material efficiently but instead generates heat without penetration. Simultaneously, porcelain tile—due to its low fracture toughness—responds to vibration stress by forming micro-cracks that propagate outward from the hole boundary.

Recommended Angle Grinder RPM for Diamond Hole Saws

Selecting the correct angle grinder RPM is primarily a function of tool diameter and heat generation control.

For small diameter vacuum brazed diamond drill bits between 6 mm and 12 mm, higher rotational speeds in the range of approximately 8,000 to 10,000 RPM are generally acceptable. These tools have limited contact area and therefore dissipate heat more efficiently.

For mid-range sizes between 14 mm and 35 mm, performance stabilizes within a more controlled window of 6,000 to 8,000 RPM. This range is commonly used for plumbing, electrical, and general tile installation work.

When operating larger hole saw cutter diameters between 38 mm and 68 mm, rotational speed should be reduced further to approximately 4,500 to 6,500 RPM. At this scale, peripheral velocity increases significantly even at moderate RPM, requiring stricter thermal control.

For large structural bores exceeding 70 mm, optimal performance is achieved at approximately 3,500 to 5,000 RPM. At this level, torque stability becomes more important than raw speed.

In practical field conditions, a variable-speed angle grinder is strongly recommended. Fixed-speed grinders operating at around 11,000 RPM are generally unsuitable for precision porcelain tile drilling unless speed control is externally managed.

Matching Diamond Drill Bit Selection to Material Behavior

Correct diamond drill bits selection is as important as RPM control.

Porcelain tile requires vacuum brazed tools with high diamond exposure density and strong thermal resistance. Its dense vitrified structure generates significant friction, making low to moderate RPM combined with controlled cooling the optimal strategy.

Ceramic tile is comparatively softer and more forgiving. While it allows slightly higher drilling speeds, excessive RPM still leads to unnecessary wear and reduced edge quality.

Granite introduces a different mechanical challenge due to its high quartz content and abrasive mineral composition. In this case, a reinforced core drill bit with industrial-grade diamond concentration is required. Performance depends more on maintaining consistent feed pressure and cooling than on increasing speed.

Marble, while softer, has a layered crystalline structure that is highly sensitive to vibration. Excessive RPM or unstable feed pressure can cause internal fracture lines rather than clean bore formation.

Entry Angle Technique and Drilling Stability

Proper initiation of the cut is a critical factor in preventing surface damage.

Professional installers typically avoid placing the hole saw cutter perpendicular to the tile surface at the start of drilling. Instead, the tool is introduced at approximately a 45-degree angle. This allows a controlled contact point between the diamond rim and the glaze layer, forming a stable anchor groove.

Once the groove is established, the tool is gradually rotated into a vertical position while maintaining steady RPM. This transition reduces lateral slip and minimizes surface scratching.

Throughout the drilling process, pressure should remain minimal. The cutting action should be governed by abrasive interaction rather than mechanical force.

Cooling, Heat Control, and Glazing Prevention

Thermal management is one of the most underestimated aspects of diamond drilling.

Although vacuum brazed diamond drill bits are capable of dry operation, introducing water significantly improves both cutting efficiency and tool lifespan. Water acts as a thermal regulator, slurry remover, and friction reducer simultaneously.

By lowering interface temperature, water prevents diamond glazing and preserves the sharp exposure of abrasive particles. It also reduces ceramic dust accumulation, which otherwise accelerates secondary wear.

In situations where wet drilling is not possible, intermittent air cooling should be applied by periodically lifting the bit out of the cut while maintaining rotation. This allows centrifugal airflow to dissipate heat buildup.

Practical Selection Guidance for Users

From an operational standpoint, selecting the correct combination of RPM and tool type is more important than maximizing power or speed.

Users should align their selection process with three core principles. First, tool diameter determines safe RPM range due to changes in peripheral velocity. Second, material hardness dictates required diamond density and bond strength. Third, cooling availability determines whether the process can operate continuously or must be cycled.

When these three parameters are correctly aligned, vacuum brazed tile drill bits operate efficiently, producing clean holes with minimal edge chipping and extended service life.

Ultimately, successful porcelain tile drilling is not a function of aggressive speed, but of controlled mechanical balance between rotational velocity, thermal regulation, and abrasive engagement.
