How to Choose the Right Diamond Router Bit for Granite and Marble Edges
Routing a granite or marble edge is a very different job from routing wood or other soft materials. Natural stone is abrasive, and the result depends on more than simply choosing a bit that fits the router. The shank size, bit profile, stone thickness, feed rate, and cutting depth all affect how smoothly the edge can be shaped and how long the tooling lasts.
For granite and marble profiling, diamond router bits are a practical choice because they remove material through abrasion rather than relying on a conventional cutting edge. The right bit can help produce a consistent profile, while the wrong combination of tool and operating conditions can lead to excessive wear, vibration, or edge chipping.
Why Diamond Router Bits Are Used for Granite and Marble
Granite and marble behave differently during routing, so it is useful to understand the material before choosing a bit.
Granite contains hard minerals such as quartz and feldspar, which make it highly resistant to abrasion. During edge profiling, the tooling remains in contact with these hard particles, so wear resistance is an important consideration.
Marble is generally easier to machine than granite, but its softer structure does not mean that it can be routed aggressively. Excessive feed pressure or an overly deep pass can cause chipping along the edge, particularly on thinner pieces or areas with a more delicate profile.
A conventional router bit uses a defined cutting edge to remove material. A diamond router bit works differently: exposed diamond particles grind the stone away as the tool follows the edge. This abrasive cutting action makes diamond tooling well suited to granite, marble, and other abrasive stone materials.
One important distinction is that a router bit is primarily a profiling tool. It is not intended to replace a saw blade for making the initial straight cut through a slab. In most fabrication work, the stone is cut close to the required dimension first, and the router bit is then used to shape or refine the edge.
Choosing the Right Shank and Profile
The shank is the part of the bit that fits into the router's collet, so compatibility should always be checked before looking at the cutting profile.
For heavier stone-routing applications, a 1/2-inch shank is a practical option because the larger shank provides a rigid connection between the router and the bit. A secure connection helps reduce unwanted movement and vibration during profiling. The shank should be inserted properly into a compatible 1/2-inch collet and tightened according to the router manufacturer's instructions.
The profile itself is just as important as the shank.
A small eased edge, bevel, or radius requires a different bit from a full bullnose, ogee, or cove profile. The thickness of the stone also affects the choice. A profile designed for a thicker countertop may not be appropriate for a thin stone piece, even if the router and shank are compatible.
This is why fabricators working with different countertops, vanity tops, tiles, and custom stone projects often need several bit sizes rather than relying on one universal profile.

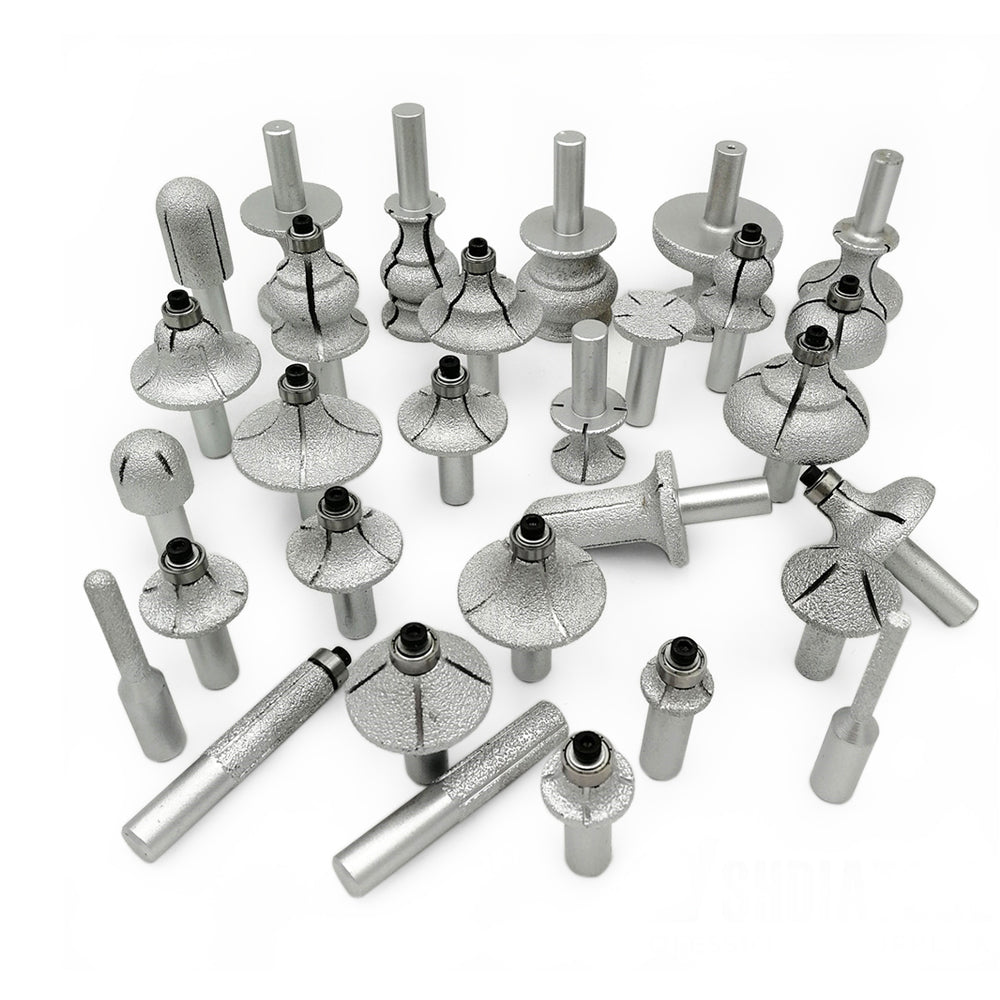

The DIASHARK 1/2" Shank Diamond Router Bit Set is designed with this type of flexibility in mind. The set includes 31 sizes, with two pieces supplied for each size, giving users more options when working on different edge dimensions and providing a spare when a frequently used size needs to be replaced.
How to Choose the Right Bit Size
There is no single diamond router bit size that works best for every granite or marble edge.
For a smaller edge detail, a smaller profile generally gives the operator more control. Larger profiles are useful when a wider edge needs to be shaped, but they also place more of the bit in contact with the stone and may require a more gradual approach.
The amount of material that needs to be removed is another important factor. If a large amount of stone has to be removed, it is usually better to establish the basic shape with a saw blade or another suitable cutting tool first. The router bit can then be used to bring the edge to its final profile.
This approach reduces the amount of material the profiling bit has to remove and makes the routing process easier to control.
A useful rule is to choose the bit according to the finished edge profile, not simply according to the diameter printed on the product. Two bits can have similar overall dimensions but produce very different edge shapes.
A Practical Approach to Routing Stone Edges
Once the correct bit has been selected, preparation has a major effect on the finished result.
Start by securing the stone firmly. The slab should not shift while the router is moving along the edge. Even small amounts of movement can produce vibration, uneven profiles, or localized chipping.
Install the bit into the correct collet and make sure it is seated securely. Before contacting the stone, run the router briefly and check for unusual vibration or visible runout. If the tool does not run smoothly, stop and identify the problem before starting the cut.
For deeper profiles, avoid trying to remove all of the material in one aggressive pass. Building the profile gradually can reduce the load on the router and diamond tooling. The appropriate number of passes depends on the bit profile, stone thickness, equipment, and amount of material being removed.
Feed rate matters as well. Pushing the router too hard can increase friction and heat, while moving too slowly under heavy load can also increase heat buildup. The goal is controlled material removal without forcing the tool through the stone.
Cooling and slurry management should also be considered. For wet-routing applications, a steady water supply can help control heat and remove stone slurry from the working area. For dry applications, follow the bit and equipment manufacturer's instructions and use suitable dust extraction and personal protective equipment.
Why Does a Diamond Router Bit Wear Out Quickly?
Premature wear is not always caused by the quality of the diamond bit. Operating conditions often play a significant role.
One common cause is excessive feed pressure. If the router is being forced into the stone, the additional pressure can increase friction without necessarily increasing cutting efficiency.
Another is excessive depth of cut. A profile bit working through a large amount of material in a single pass experiences substantially more load than one making a lighter finishing pass.
Operating speed should also be matched to the tooling and equipment. There is no universal RPM that is correct for every diamond router bit. The appropriate speed depends on factors such as bit diameter, router design, material, wet or dry operation, and the manufacturer's specifications. Simply selecting the highest available router speed is not a reliable way to improve cutting performance.
Material hardness also makes a difference. A hard granite or quartzite can wear diamond tooling differently from a softer marble. If the same bit is used on several materials, changes in feed rate, cooling, or cutting strategy may be necessary.
In practice, consistent results usually come from finding the right balance between speed, feed pressure, cutting depth, and cooling rather than relying on one setting.
Diamond Saw Blade or Diamond Router Bit?
The two tools perform different jobs, and using them at the right stage makes stone fabrication more efficient.
A diamond saw blade is primarily used for straight cuts, trimming slabs, and creating openings such as sink cutouts. A diamond router bit is intended for controlled edge shaping and profiling.
A simple way to think about it is:
Use the saw blade to establish the shape. Use the router bit to create the edge profile.
Trying to use a router bit to remove a large amount of stone that could have been cut away first can add unnecessary load and wear. Likewise, using a saw blade when the job requires a shaped edge will not produce the same profile.
Getting More Consistent Results
A good granite or marble edge does not come from the bit alone. The condition of the stone, the router, the selected profile, and the operator's technique all contribute to the final result.
Before starting a production job, it is worth testing the selected bit on a scrap piece of the same or similar material. This gives you an opportunity to check the profile, feed rate, cooling method, and final edge appearance before working on the finished slab.
For shops and installers who work with different stone thicknesses and edge profiles, having multiple sizes available can also make the workflow more practical.
The DIASHARK Diamond Router Bit Set provides 31 sizes with two pieces of each size and a 1/2" shank, making it a versatile option for granite and marble edge-routing applications. Instead of keeping only one profile on hand, users can select a size that better matches the edge they need to produce and keep a spare available for frequently used profiles.
The most important part of choosing a diamond router bit is not simply finding the most aggressive tool. It is matching the shank, profile, size, stone, and cutting method to the job. With the right setup and controlled passes, diamond routing can produce clean, repeatable granite and marble edges while keeping unnecessary tool wear under control.
Frequently Asked Questions
Can you use a diamond router bit on granite?
Yes. Diamond router bits are commonly used for granite edge shaping and profiling because diamond abrasive is well suited to hard, abrasive stone.
Can a diamond router bit be used on marble?
Yes. Diamond router bits can be used for marble edge shaping and profiling. Because marble is generally softer than granite, controlled feed pressure is still important to reduce the risk of chipping.
What shank size should I use for a stone router bit?
The shank must match the router's collet. The DIASHARK set uses a 1/2-inch shank, so it should be used with compatible equipment.
What is the best diamond router bit size for granite?
The best size depends on the required edge profile, stone thickness, and amount of material that needs to be removed. A multi-size set is useful when working with different edge profiles.
Should I use a saw blade or router bit for granite?
Use a diamond saw blade for straight cutting and initial material removal. Use a diamond router bit when the objective is to shape or profile the finished edge.
