How to Choose the Right Quartz Stone CNC Router Bits: A Complete Guide

Working with quartz stone on a CNC engraving machine requires more than simply choosing a router bit with a diamond tip. Quartz and engineered stone are hard, abrasive materials, and the tool needs to maintain a stable cutting edge while running at high spindle speeds. The right quartz stone CNC router bit should match the material, machine type, shank diameter, cutting profile and operating speed.

For stone edge profiling, engraving and selected cutting applications, vacuum brazed diamond router bits are widely used because the diamond abrasive is directly bonded to the working surface, providing fast material removal and a long working life. DIASHARK quartz stone CNC router bits are designed for high-speed stone machining and are available in multiple shapes and sizes for different profiling and cutting requirements.

What Is a Quartz Stone CNC Router Bit?

A quartz stone CNC router bit is a diamond cutting tool designed for machining quartz stone, engineered stone, granite, marble and other hard stone materials with a CNC router, digital engraving machine or large stone routing equipment.

Unlike conventional carbide router bits used for wood, plastic or softer materials, diamond router bits remove stone through abrasive grinding. This makes them suitable for materials that are too hard or abrasive for ordinary cutting tools.

For quartz stone processing, tool construction is especially important because the material can generate significant heat and cutting resistance during machining. A properly designed diamond router bit helps maintain cutting efficiency while reducing premature wear and unnecessary damage to the workpiece.

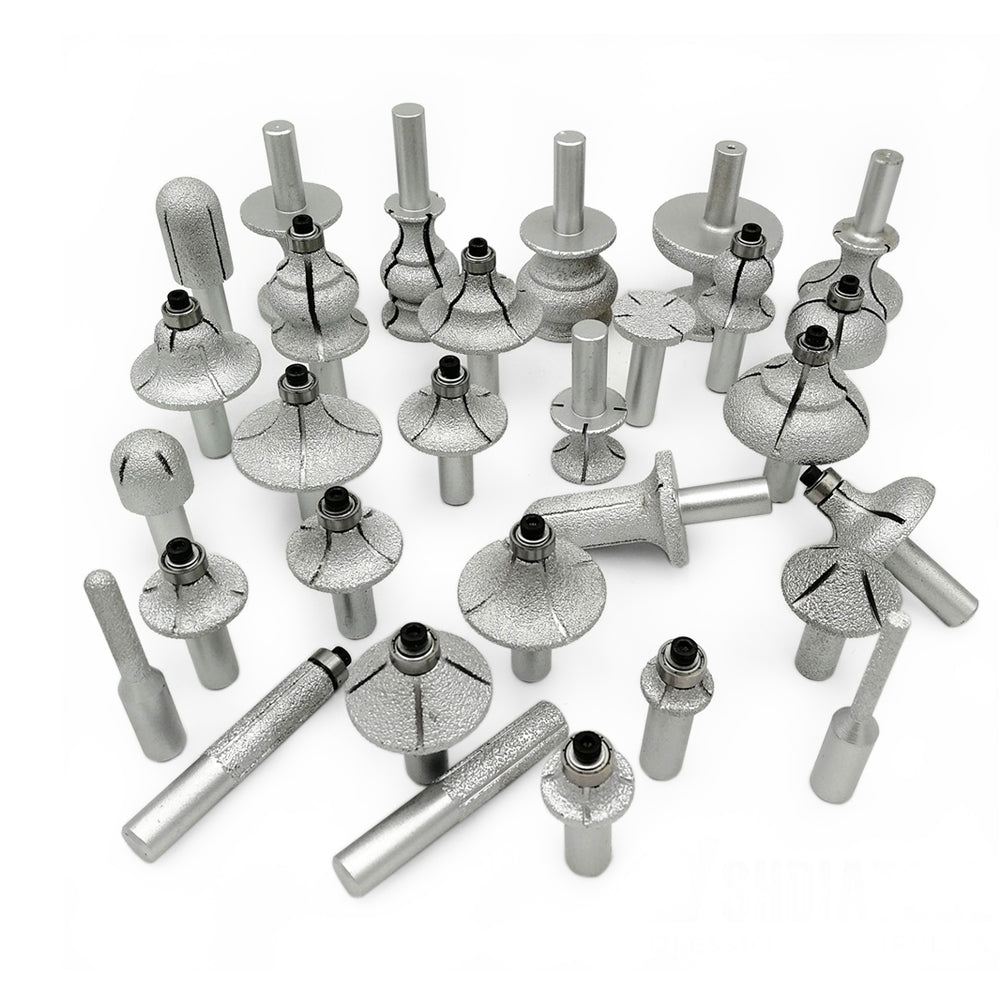

DIASHARK offers a range of diamond router bit profiles with 31 available models, allowing users to select different working diameters, thicknesses, lengths and shank configurations according to the machining application. The product page specifies #60 diamond grit and vacuum brazed construction for stone edge profiling and cutting.

Why Use Vacuum Brazed Diamond Router Bits for Quartz Stone?

Vacuum brazing is particularly useful for diamond tooling because the diamond abrasive is firmly bonded to the surface of the tool rather than being embedded throughout a conventional sintered segment.

This construction provides a high concentration of exposed diamond, which allows the tool to remove hard stone efficiently. It also makes vacuum brazed router bits suitable for applications where fast cutting and aggressive material removal are required.

For quartz stone edge profiling, the cutting efficiency of the diamond layer is important because the router bit must continuously remove abrasive material while maintaining a consistent profile.

Another advantage is that the tool can be used either wet or dry depending on the machine and application. However, using water or another suitable cooling agent is recommended whenever possible because cooling helps control working temperature and can extend the service life of the diamond router bit.

What Materials Can These CNC Diamond Router Bits Machine?

Quartz stone is one of the main applications, but the same type of diamond router bit can also be used on a range of natural and engineered stone materials.

Typical applications include:

Quartz stone and engineered quartz

Granite

Marble

Engineered stone

Other hard stone materials

The exact performance will depend on the hardness and composition of the material, the selected router bit profile, spindle speed, feed rate, cutting depth and cooling conditions.

Quartz stone is particularly abrasive, so using a diamond tool designed for stone machining is important when consistent edge quality and reasonable tool life are required.

Main Applications: Stone Edge Profiling and Cutting

The primary application of these router bits is stone edge profiling.

Different router bit shapes can be selected according to the required edge geometry. A CNC machine can follow a programmed toolpath to create straight, rounded, beveled or other shaped edges on stone countertops, slabs and fabricated stone components.

For example, a stone fabrication shop may use a diamond router bit to shape the edge of a quartz countertop after the slab has been cut to size. Instead of manually removing a large amount of material, the CNC machine can follow a controlled path and gradually create the required profile.

Some configurations can also be used for cutting. However, not every profile is intended for cutting applications.

For the DIASHARK range, the clear-bottom cutter is the designated model for cutting, while the other profiles are intended primarily for stone edge profiling. This distinction is important because a profile designed for edge shaping should not automatically be treated as a general-purpose cutting tool.

Recommended Speed: 10,000–20,000 RPM

Quartz stone CNC router bits are designed to operate at relatively high spindle speeds.

The recommended operating range for this DIASHARK quartz stone engraving cutter is:

10,000–20,000 RPM

The correct speed should still be selected according to the specific machine, tool diameter, material and cutting conditions.

Running a diamond router bit significantly outside its intended speed range can affect cutting performance and tool life. Excessive speed can increase heat generation, while an unsuitable feed rate combined with high cutting pressure can cause unnecessary wear on the diamond layer.

For a new tool or unfamiliar quartz material, it is better to begin with a conservative machining setup and make a test pass before moving to more aggressive parameters.

Wet or Dry Machining?

One of the useful features of vacuum brazed diamond router bits is their ability to operate in either wet or dry conditions.

Dry machining can be convenient when the CNC machine is not equipped with a water-cooling system, but the operator needs to pay close attention to heat, dust and cutting conditions.

Wet machining is generally preferable when the machine allows it. A continuous supply of water or suitable coolant can help remove heat from the working area and wash away stone dust and slurry.

For quartz stone, cooling becomes particularly important during continuous machining because the tool can remain in contact with a hard and abrasive surface for extended periods.

DIASHARK recommends wet or dry use for this type of router bit, with water or another cooling agent recommended for longer tool life.

1/2-Inch Shank for Routers and CNC Stone Machines

The standard version of this DIASHARK router bit uses a 1/2-inch shank, making it suitable for compatible large routers, CNC engraving machines and stone routing equipment.

Before installing a router bit, always check the machine's collet or tool holder. The shank diameter needs to match the machine accurately, and the bit must be securely clamped before operation.

A correct connection is especially important when machining quartz and other hard stone because cutting forces can be considerably higher than when machining wood or plastic.

The product range includes multiple configurations, so the working diameter, thickness, shank and overall length should be checked before selecting a specific model. The DIASHARK product page currently lists 31 models with these dimensions indicated in the product images.

Important: Router Bits with Top Bearings Are Not for Large CNC Engraving Machines

Not every quartz stone router bit should be used on every CNC machine.

Some of the profiles in this range are equipped with a top bearing. These bearing-equipped versions are not intended for use on large CNC engraving machines.

If you need a diamond router bit for a large CNC stone machine, the shank diameter may need to be increased to provide the required rigidity and machine compatibility.

For these applications, 16 mm or 20 mm shanks can be custom-made according to the machine requirements.

This is particularly important for professional stone fabrication shops using large CNC equipment. A larger shank can provide a more suitable connection for machines designed for heavier-duty stone processing.

Before ordering a custom CNC router bit, it is recommended to provide the machine type, collet size, required shank diameter, working diameter, working length and profile drawing. This allows the tool configuration to be matched to the actual machine rather than simply selecting a standard router bit.

Nylon Guide for More Consistent Beveled Edges

Some DIASHARK stone profiling cutters are designed with a nylon guide to help maintain a consistent straight line when machining beveled edges.

This is useful when the tool needs to follow the edge of a stone slab while maintaining a stable distance from the reference surface.

For countertop fabrication and other edge profiling work, consistency is just as important as cutting speed. A small variation in the tool path can become visible along a long stone edge, especially when the finished surface will later be polished.

The guide therefore helps the operator maintain a more controlled profile during the machining process.

Bottom Bearing Helps Prevent Over-Cutting

Certain router bit designs also incorporate a bottom bearing.

The purpose of the bottom bearing is to help control the position of the cutter relative to the stone surface and reduce the risk of excessive cutting into the granite or other stone material.

This can be particularly useful when following an existing edge or reference surface where maintaining a consistent profile is important.

However, the bearing configuration must always match the intended machine and application. A bearing-equipped cutter should not be selected solely because it appears to offer additional control; the machine clearance, cutting direction and workpiece geometry also need to be considered.

Choosing the Right Quartz Stone CNC Router Bit

The most important factors to consider are not simply the diameter of the diamond cutter.

First, identify the material. Quartz, engineered stone, granite and marble do not necessarily behave in exactly the same way during machining.

Next, identify the application. If the job is stone edge profiling, select a profile that matches the required finished edge. If the job requires cutting, make sure the selected model is specifically intended for cutting rather than only profiling.

The machine is equally important. A small or medium CNC router may use a standard 1/2-inch shank, while a large CNC stone machine may require a heavier 16 mm or 20 mm shank.

Finally, check the working dimensions of the tool, including maximum diameter, thickness, working length and shank diameter. DIASHARK provides 31 different models in this series, making it possible to select the geometry according to the actual machining requirement.

Tips for Longer Diamond Router Bit Life

Diamond router bits are consumable tools, but proper operation can significantly affect how long they remain effective.

Avoid forcing the cutter into the material with excessive feed pressure. Quartz and engineered stone are hard materials, and the diamond abrasive needs to remove material progressively rather than being overloaded.

Keep the spindle speed within the recommended range and pay attention to the relationship between RPM, feed rate and cutting depth.

When possible, use water or coolant to control temperature and remove stone debris from the working area.

It is also important to avoid using a profiling cutter for an application it was not designed for. For example, a tool intended only for edge profiling should not be used as a substitute for a dedicated cutting tool.

Finally, make sure the router bit is properly clamped and that the CNC machine has sufficient rigidity for the selected cutter. Tool vibration and runout can quickly affect both the finished edge and the life of the diamond layer.

DIASHARK Quartz Stone CNC Router Bits

For CNC stone fabrication, the right diamond router bit needs to match the material, machine and application.

DIASHARK vacuum brazed diamond router bits are designed for stone edge profiling and selected cutting applications, with 31 available models covering different working dimensions and profiles. The tools can be used wet or dry, with cooling recommended for longer working life, and the standard range is designed around high-speed machining applications.

For large CNC engraving machines requiring greater rigidity, DIASHARK can also provide customized versions with 16 mm or 20 mm shanks according to the machine and application requirements.

Whether you are machining quartz countertops, granite edges, marble profiles or other engineered stone components, choosing the correct diamond router bit is the first step toward achieving a stable machining process and a consistent finished edge.
