Three Diamond Bonding Methods: High-Frequency Welding VS Laser Welding VS Vacuum Brazing

Not all diamond drill bits are made in the same way. The diamond itself is only part of the tool — the way the diamond or diamond segment is attached to the steel body has a major effect on drilling speed, heat resistance, durability and the type of material the bit can handle.

For diamond core drill bits, three common manufacturing methods are high-frequency welding, laser welding and vacuum brazing. Although all three methods are used to create a strong connection between the diamond cutting system and the steel body, their structures are different, which means they are designed for different applications.

1. High-Frequency Welding

High-frequency welding, also called high-frequency brazing or induction brazing, uses electromagnetic induction to heat the joint between the diamond segment and the steel body. A brazing alloy is placed between the two surfaces, and the high-frequency heating melts the alloy and forms the connection after cooling.

With this construction, the diamond is normally contained inside a diamond segment, while the segment is attached to the steel tube through a brazed joint.

High-frequency welded diamond core bits are commonly used for general drilling applications where the working conditions are relatively controlled. They can provide good drilling performance at a lower manufacturing cost, making them suitable for many conventional tile, masonry and stone drilling applications.

However, the brazed joint has a lower thermal tolerance than a laser-welded connection. Under excessive heat, especially during aggressive dry drilling or when drilling reinforced materials, the joint can become the weak point of the tool. For this reason, correct drilling pressure, rotation speed and cooling are important when using high-frequency welded bits.

2. Laser Welding

Laser welding uses a concentrated high-energy laser beam to create a metallurgical connection between the diamond segment and the steel core. Unlike conventional brazing, the connection does not rely on a separate silver-based filler layer in the same way. The laser locally melts the metal at the joint, creating a highly concentrated weld.

The main advantage of laser welding is joint strength and heat resistance.

This makes laser-welded diamond core bits particularly suitable for demanding drilling conditions, including concrete, reinforced concrete, masonry and other applications where the tool may experience high mechanical loads or elevated temperatures. Laser welding is also widely used for professional dry and wet drilling tools.

Another important advantage is safety. If a conventional brazed connection overheats and fails, the segment can potentially separate from the steel body. Laser welding greatly reduces this risk because the segment is strongly fused to the core. Technical literature has reported substantially higher joint strength for laser-welded tools compared with brazed connections.

For this reason, laser welding is generally associated with professional-grade diamond core bits and heavy-duty drilling applications.

3. Vacuum Brazing

Vacuum brazing is fundamentally different from the two segment-welding methods above.

Instead of manufacturing a separate diamond segment and then attaching that segment to the steel tube, vacuum brazing bonds individual diamond particles directly onto the surface of the steel tool body inside a controlled vacuum environment.

During the process, a brazing alloy melts and flows around the diamond particles, firmly anchoring them to the steel body. Because the diamonds are exposed directly on the working surface, the tool can begin cutting aggressively without waiting for a large segment to wear down before new diamond particles become exposed.

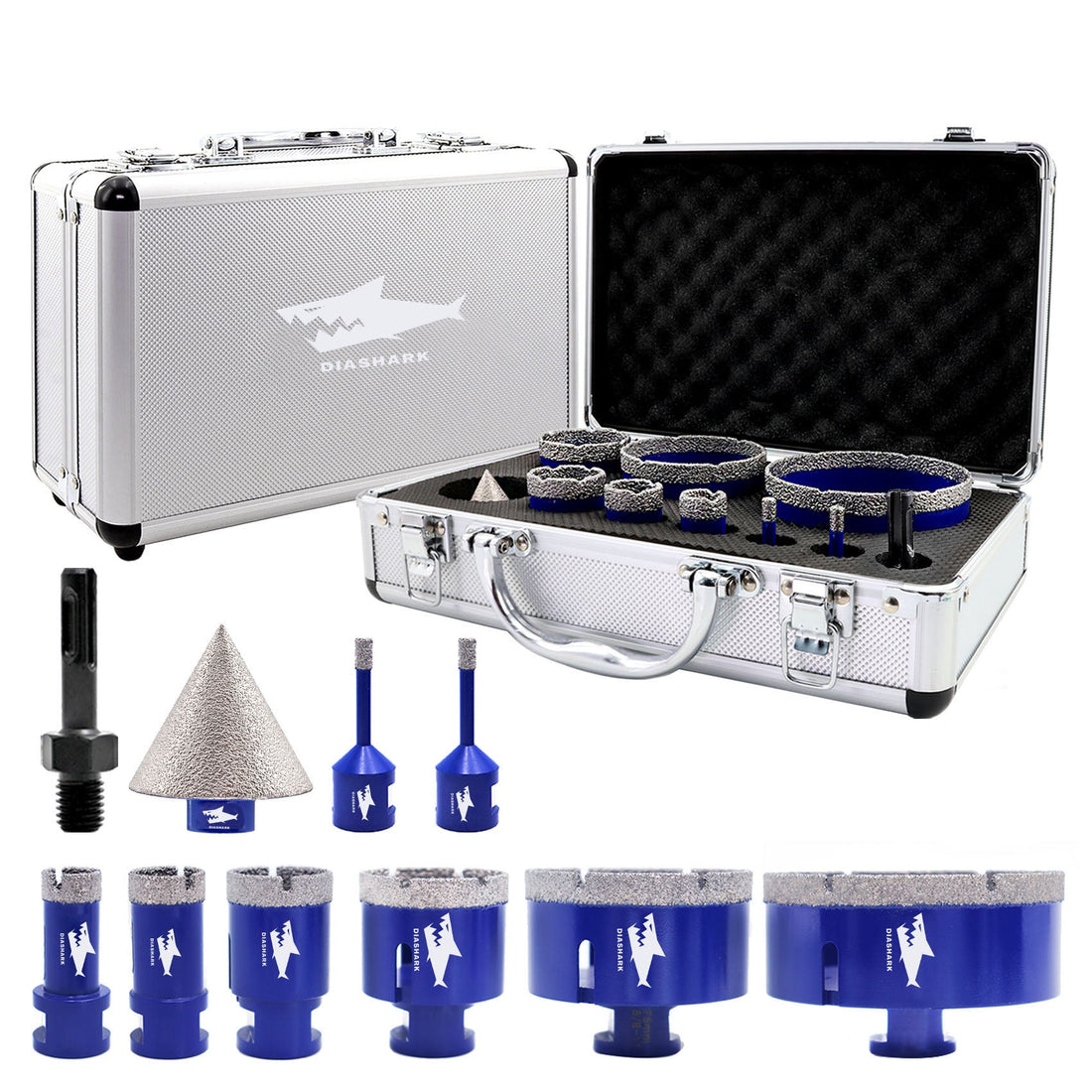

This structure is particularly useful for porcelain tile, ceramic tile, granite, marble, quartz and other hard, brittle materials where fast material removal and high diamond exposure are important. Vacuum-brazed drill bits are also widely available in small and medium diameters for tile and stone installation work.

One of the biggest advantages of vacuum brazing is its aggressive initial cutting performance. Since the diamonds are directly exposed on the surface, the bit can start cutting immediately and does not rely on the gradual wear of a sintered segment to expose fresh diamond.

This is one reason vacuum-brazed diamond drill bits are especially popular for dry drilling and fast hole opening in porcelain and stone.

High-Frequency Welding vs. Laser Welding vs. Vacuum Brazing

Which Diamond Drill Bit Should You Choose?

The manufacturing process should be considered together with the material being drilled and the way the tool will be used.

For porcelain tile, ceramic tile, granite, marble and quartz, vacuum-brazed diamond drill bits are often a practical choice when fast cutting and high diamond exposure are important.

For concrete, reinforced concrete and demanding construction drilling, laser-welded core bits are generally better suited to the higher mechanical and thermal loads involved.

For general-purpose drilling where operating conditions are moderate and cost is an important consideration, high-frequency welded diamond core bits can provide a practical balance between performance and manufacturing cost.

The key point is that there is no single bonding method that is ideal for every diamond drill bit. The bonding technology should match the material, drilling method, diameter, operating speed and heat generated during drilling.

A More Important Point About Vacuum Brazed Diamond Bits

For tile and stone users, it is also important to understand that vacuum brazing and laser welding are not simply two different ways of making the same drill bit.

A laser-welded bit normally uses diamond segments. The diamonds are contained within the segment, and the segment is then welded to the steel core.

A vacuum-brazed bit normally has the diamond particles distributed directly on the working surface of the steel body. This gives the diamonds a much higher exposure and creates a different cutting behavior.

That structural difference is why vacuum-brazed bits can be extremely aggressive on hard and brittle materials such as porcelain and granite, while laser-welded segmented core bits are better suited to applications where segment retention, structural strength and resistance to severe drilling conditions are the primary requirements.
