Tools Guide 101: How to Choose the Right SDS Adapter for Diamond Core Drilling

Not every diamond core drill bit can be connected directly to an SDS rotary hammer. Before choosing an adapter, you need to check four things: the machine chuck, the adapter shank, the drill bit thread, and the required drilling mode.

With the right adapter, a compatible diamond core bit can be used with an existing SDS-Plus or SDS-Max machine, which can be useful for drilling tile, stone, masonry, and other hard materials.

DIASHARK offers several SDS adapters for common connections including SDS-Plus, SDS-Max, 5/8"-11, M14, 1-1/4"-7 UNC, and 1/2 BSP. The right choice depends on the machine you have and the connection on the diamond tool.

SDS-Plus or SDS-Max: Check Your Machine First

The first thing to check is the chuck on your rotary hammer.

SDS-Plus and SDS-Max use different shank systems and are not directly interchangeable. SDS-Plus is commonly found on smaller and medium-duty rotary hammers, while SDS-Max is generally used on larger, higher-power machines.

Before ordering an adapter, check the specification of your machine rather than relying only on the drill's brand or appearance.

SDS-Plus machine → use an SDS-Plus adapter

SDS-Max machine → use an SDS-Max adapter

The adapter shank has to match the machine chuck.

Check the Thread on the Diamond Core Bit

Once you know which SDS system your machine uses, look at the connection on your diamond core bit.

Several thread standards are commonly found on diamond drilling tools:

5/8"-11 is widely used on diamond tools and core drilling accessories, particularly in North American applications.

M14 is a metric thread commonly found on diamond tools and accessories designed for compatible angle grinders and other equipment.

1-1/4"-7 UNC is a larger threaded connection used on certain diamond core drilling systems.

1/2 BSP is a British Standard Pipe thread used on some drilling accessories and diamond core bits.

These thread specifications are different. A 5/8"-11 bit, for example, cannot be properly fitted to an M14 connection simply because the two threads may appear similar in size.

Always check the exact thread specification of the core bit before selecting an adapter.

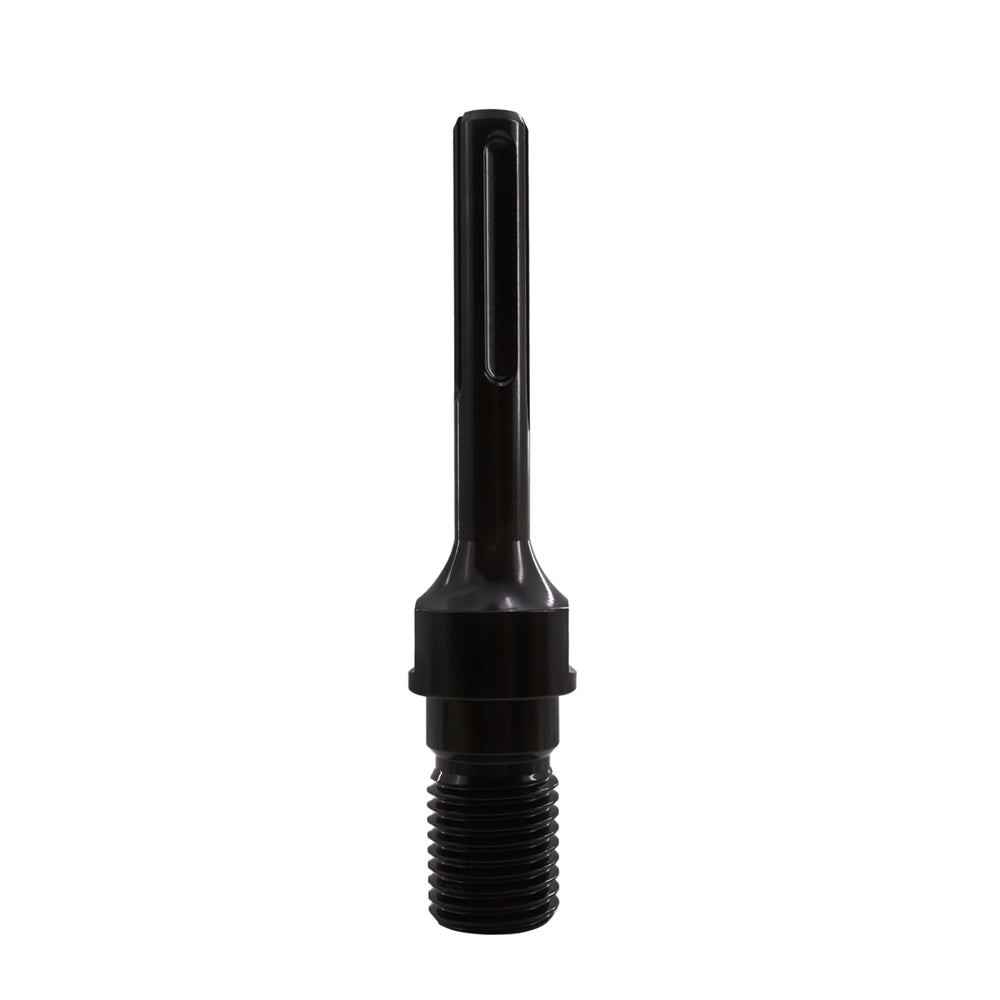

DIASHARK 1-1/4"-7 UNC / 1/2 BSP to SDS Adapter

For compatible diamond core bits using a 1-1/4"-7 UNC or 1/2 BSP connection, DIASHARK offers a 190 mm adapter with an SDS shank.

The adapter is available for SDS-Plus and SDS-Max machines.

Specifications

• 1-1/4"-7 UNC male thread

• 1/2 BSP female thread

• SDS-Plus or SDS-Max shank

• 190 mm overall length

• High-quality reinforced steel body

• Electrophoretic surface treatment

The dual-thread design is useful when working with diamond drilling accessories using different thread standards. Instead of carrying separate fittings for every connection, the same adapter provides both a 1-1/4"-7 UNC male connection and a 1/2 BSP female connection.

The adapter body is made from reinforced steel for strength and durability. An electrophoretic surface treatment helps protect the steel against corrosion during normal use and storage.

Rotary Mode Only

This adapter should be used in rotary mode only.

Do not use hammer or impact mode with this adapter. Impact loading can place excessive stress on the threaded connection, adapter body, and diamond core bit, increasing the risk of damage or tool failure.

If your SDS machine has a selector for different operating modes, choose rotation only for this application.

Also make sure you select the correct SDS version. SDS-Plus and SDS-Max are not interchangeable.

DIASHARK 5/8"-11 / M14 to SDS-Plus Adapter

If your diamond core bit uses a 5/8"-11 or M14 thread and your machine has an SDS-Plus chuck, the DIASHARK SDS-Plus adapter provides the connection between the threaded core bit and the machine.

It is a practical option when you already own an SDS-Plus rotary hammer or compatible electric drill but your diamond core bit uses a threaded connection rather than an SDS shank.

The adapter is made from high-quality steel for strength and durability.

Before drilling, check that the thread on the core bit matches the adapter exactly. The adapter should also be fully inserted and locked into the SDS-Plus chuck.

For standard threaded diamond core drilling, use rotary mode unless the complete tool system is specifically approved for impact operation.

DIASHARK 5/8"-11 / M14 to SDS-Max Adapter

For machines with an SDS-Max chuck, DIASHARK also offers a version designed for compatible 5/8"-11 and M14 threaded core bits.

This allows contractors to use compatible smaller threaded diamond core bits with an existing SDS-Max machine instead of purchasing a separate machine with a matching threaded spindle.

The adapter is manufactured from high-quality steel for high strength and durability.

Keep in mind that the larger SDS-Max machine interface does not change the requirements of the diamond core bit. The appropriate drilling speed, core diameter, material, and operating method still depend on the complete setup and the manufacturer's specifications.

For standard threaded diamond core drilling, use rotary mode unless impact operation is specifically permitted for the complete tool combination.

DIASHARK SDS-Plus to SDS-Max Adapter

This adapter is different from the threaded core bit adapters above. It is designed to connect an SDS-Plus shank tool to an SDS-Max machine.

If you have SDS-Plus drill bits or other compatible SDS-Plus accessories but the machine available on site has an SDS-Max chuck, this adapter can help you use those existing tools without purchasing another set of SDS-Max accessories.

The adapter is made from high-quality steel for strength and durability, with an electrophoretic surface treatment to help protect against rust and corrosion.

The adapter provides the physical connection between the two SDS systems, but the fitted SDS-Plus accessory still needs to be suitable for the machine, material, and operating mode. Check the accessory manufacturer's specifications before using hammer operation.

Which DIASHARK SDS Adapter Do You Need?

The easiest way to select the correct adapter is to look at both ends of the connection:

Machine chuck → Adapter → Diamond tool

Machine Chuck	Diamond Tool Connection	Required Adapter	Operating Mode
SDS-Plus	5/8"-11 / M14	5/8"-11 / M14 to SDS-Plus	Rotary
SDS-Max	5/8"-11 / M14	5/8"-11 / M14 to SDS-Max	Rotary
SDS-Plus	1-1/4"-7 UNC / 1/2 BSP	1-1/4"-7 UNC / 1/2 BSP to SDS-Plus	Rotary only
SDS-Max	1-1/4"-7 UNC / 1/2 BSP	1-1/4"-7 UNC / 1/2 BSP to SDS-Max	Rotary only
SDS-Max	SDS-Plus shank	SDS-Plus to SDS-Max	Follow accessory specification

If you are unsure which adapter you need, start with the machine chuck, then identify the thread or shank on the diamond tool. Those two specifications determine the adapter.

Installing an SDS Adapter Correctly

A secure connection is important because the adapter transfers the rotational force from the machine to the diamond tool.

Before installation, check the threads and SDS shank for dirt, damage, or excessive wear.

Insert the SDS shank fully into the machine chuck and make sure it is properly locked. Give the adapter a light pull to confirm that it is securely retained.

Next, install the diamond core bit onto the threaded end of the adapter. Start the thread by hand and make sure it engages smoothly. If the thread does not engage correctly, stop and check the specifications rather than forcing the connection.

Once assembled, check the core bit for obvious wobble before starting the machine.

Common SDS Adapter Mistakes to Avoid

Using the wrong thread

5/8"-11, M14, 1-1/4"-7 UNC, and 1/2 BSP are different thread standards. Do not force an incompatible core bit onto an adapter.

Using hammer mode with a standard threaded diamond core bit

For standard threaded diamond core drilling, use rotary-only mode unless the complete system is specifically rated for impact operation.

Applying excessive side pressure

Keep the drill and core bit aligned with the hole. Excessive lateral pressure can increase vibration and put unnecessary stress on the adapter and threaded connection.

Forcing the feed

Let the diamond segments do the cutting. Excessive pressure can increase heat, vibration, and mechanical load and may shorten the life of the diamond tool.

Ignoring adapter wear

Inspect the adapter before use. Pay particular attention to worn threads, a damaged SDS shank, cracks, corrosion, or excessive play.

A damaged adapter should be replaced rather than reused.

Frequently Asked Questions

Can I use hammer mode with an SDS adapter and diamond core bit?

For standard threaded diamond core drilling, use rotary-only mode unless the complete tool combination is specifically rated for impact operation.

Impact forces can place additional stress on the adapter, threaded connection, and diamond segments.

Are SDS-Plus and SDS-Max adapters interchangeable?

No. SDS-Plus and SDS-Max use different shank systems. The adapter must match the chuck on your machine.

Can I use an M14 core bit with a 5/8"-11 adapter?

No. M14 and 5/8"-11 are different thread standards. The thread on the diamond core bit must match the threaded connection on the adapter.

Can an SDS-Plus drill be used with a 1-1/4"-7 UNC core bit?

The adapter can provide the physical connection, but whether the complete setup is suitable depends on the core diameter, material, machine power, drilling speed, and the manufacturer's recommendations.

The adapter itself does not increase the drilling capacity of the machine.

What is the difference between the 5/8"-11 / M14 adapters and the 1-1/4"-7 UNC / 1/2 BSP adapter?

They are designed for different threaded tool connections.

The 5/8"-11 / M14 adapters are intended for compatible diamond tools using those thread standards, while the 1-1/4"-7 UNC / 1/2 BSP adapter provides a 1-1/4"-7 UNC male connection and a 1/2 BSP female connection.

Choose the adapter according to the actual thread on your diamond core bit.

Final Thoughts

Choosing an SDS adapter comes down to matching the complete connection:

Machine Chuck → SDS Shank → Thread → Diamond Tool

First identify whether your machine uses SDS-Plus or SDS-Max. Then check the thread or shank on the diamond core bit.

For DIASHARK SDS adapters, the available combinations cover common 5/8"-11, M14, 1-1/4"-7 UNC, 1/2 BSP, SDS-Plus, and SDS-Max connections.

A properly matched adapter gives you more flexibility when using existing drilling equipment and diamond tools. Just as importantly, make sure the connection is secure and use the correct drilling mode for the complete tool setup.
