DIASHARK 11pcs/set 6-65mm Diamond Drill Bit with Triangular Shank for Granite Marble Porcelain Ceramic Tile Angle Grinder

DIASHARK 11-Piece Diamond Drill Bit Set with Triangular Shank, 6–65mm

The DIASHARK 11-piece diamond drill bit set is designed for drilling clean, accurate holes in granite, marble, porcelain, ceramic tile, masonry, concrete, glass and other hard materials. The set includes multiple diamond drill bit sizes from 6mm to 65mm, along with a finger bit and chamfer milling bit, making it a practical choice for tile installation, stone fabrication, renovation and general drilling applications.

These diamond drill bits feature a 10mm triangular shank designed for compatible angle grinders and machines. Please confirm that your machine accepts a triangular shank with a 10mm handle diameter before ordering.

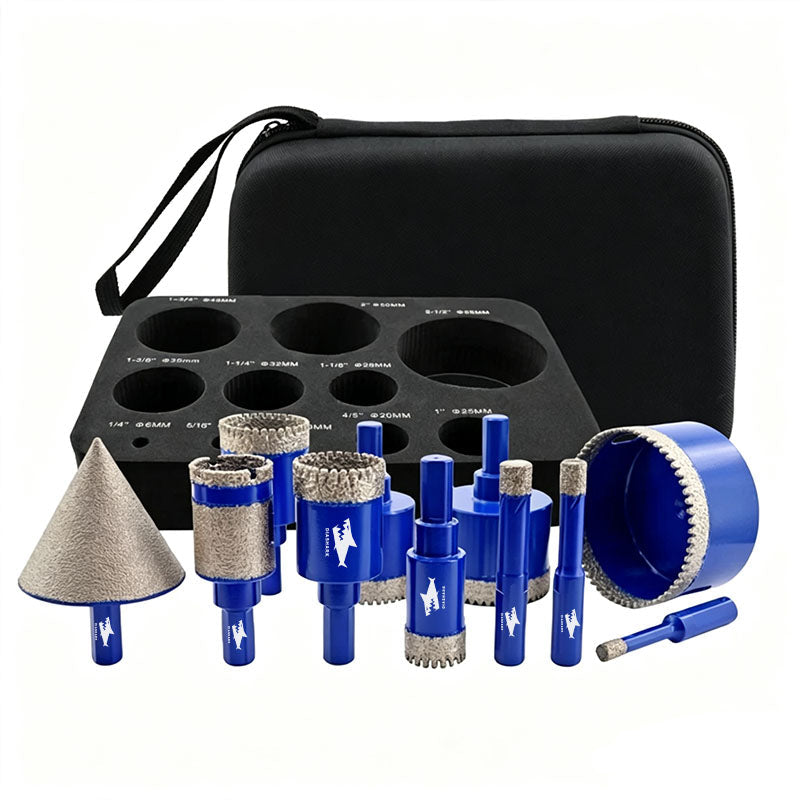

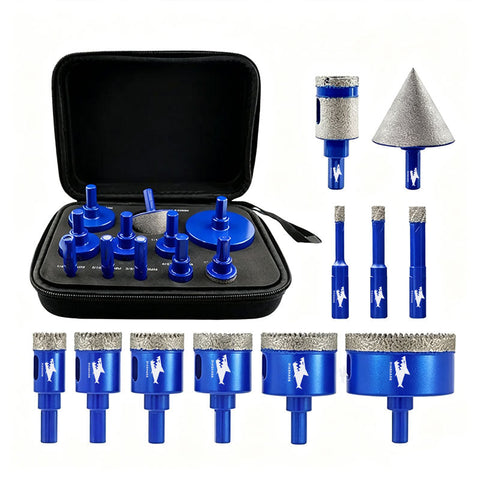

11-Piece Diamond Drill Bit Set

The set includes diamond drill bits covering a wide range of commonly used hole sizes, allowing you to handle different drilling requirements without purchasing each size separately. The aluminum storage case keeps the tools organized and makes transportation and storage easier.

• Drill Bit Sizes: 6mm, 8mm, 10mm, 20mm, 28mm, 32mm, 35mm, 45mm and 65mm
• Diamond Height: 10mm
• Total Length: 65mm
• Shank Type: Triangular Shank
• Shank Diameter: 10mm
• Quantity: 11 pieces
• Storage: Aluminum Case

Finger Bit Specifications

• Total Length: 65mm
• Drilling Section: 5mm length, Grit #40/45
• Milling Section: 25mm length, Grit #70/80
• Shank Diameter: 10mm

The finger bit combines drilling and milling functions, making it useful for enlarging holes, adjusting openings and performing localized material removal during stone and tile work.

Chamfer Milling Bit

• Diameter: 50mm
• Total Length: 73mm
• Working Length: 43mm
• Grit: #80
• Shank Diameter: 10mm

The chamfer milling bit is designed for edge and opening finishing applications where additional chamfering or material removal is required.

Vacuum Brazed Diamond Technology

These diamond drill bits use vacuum brazed diamond technology to securely bond diamond particles to the working surface. High-quality diamond grains provide efficient cutting performance and help produce clean holes with a good finish.

The vacuum brazed construction also helps reduce premature diamond loss and tool breakage compared with conventional bonded drilling tools, providing a durable solution for repeated drilling applications.

U-Groove Design for Faster Debris Removal

The U-groove design creates channels around the drilling area to help remove drilling debris and improve cutting efficiency. Better debris evacuation can help reduce clogging during drilling and maintain smoother contact between the diamond segments and the material.

Applications

The DIASHARK diamond drill bit set is suitable for a wide range of hard materials, including:

• Granite
• Marble
• Porcelain tile
• Ceramic tile
• Masonry
• Concrete
• Glass
• Hard plastic

Typical applications include tile installation, bathroom renovation, kitchen projects, stone fabrication, plumbing openings, countertop installation and other drilling work involving hard materials.

How to Start Drilling

For accurate positioning, use a suction cup drill locator whenever possible. If a locator is not available, start drilling with the bit held at approximately a 45-degree angle. Once the diamond edge begins to penetrate the material and the hole is established, gradually lift the drill to a vertical position and continue drilling.

This starting technique helps prevent the bit from wandering across smooth surfaces such as porcelain tile, ceramic tile, marble and granite.

Important Safety and Compatibility Notes

Check the shank before use. This set uses a 10mm triangular shank. Make sure your machine is specifically compatible with this shank type and diameter.

Disable impact mode. Do not use hammer or impact action when drilling. Impact operation can d
